AC4000(26～40kw) Series ordinary outdoor room inter-level air cooled air conditioner

PORTOWER product

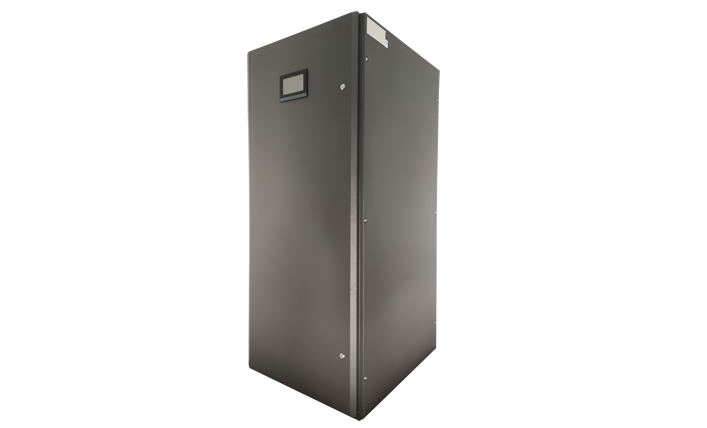

AC4000 Precision Air-Cooled Air Conditioner, 26–40 kW

AC4000 26–40 kW precision air-cooled air-conditioning units for data-center environments. Modular design supports flexible expansion and precise control; an optional constant-temperature and humidity function is available. Request a quotation to confirm configuration.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelAC4000-26 Series | AC4000-30 Series | AC4000-35 Series | AC4000-40 Series

cooling_capacity_kw24.1 | 27.8 | 32.5 | 36.8

functionOptional constant temperature and humidity function

electric_heating_capacity_kw3 | 3 | 6 | 6

electric_humidification_capacity_kg_h8

filter_gradeG4

indoor_unit_air_volume_m_h7500 | 9000 | 10000 | 11590

number_of_indoor_fans1

indoor_main_power_supply3N+PE~380V 50Hz

indoor_unit_size_width_depth_height_mm880*1000*1980

indoor_unit_weight_kg325 | 380 | 390 | 390

outdoor_unit_size_width_depth_height_mm1495*1235*1165 | 1495*1235*1165 | 1495*1235*1240 | 1495*1235*1240

outdoor_unit_weight_kg115 | 115 | 135 | 135

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
