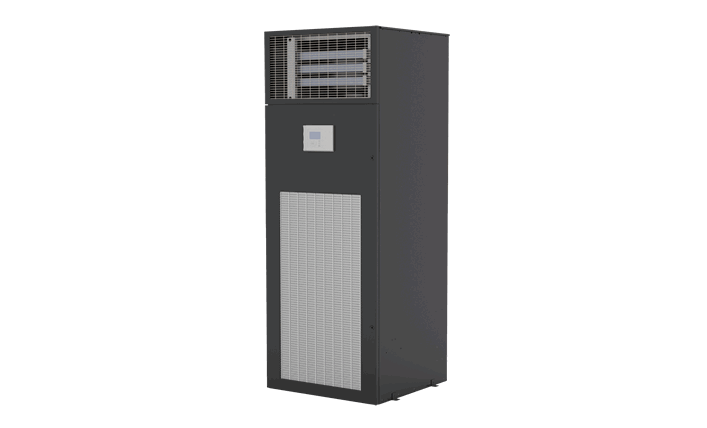

AC4000 series 8kW-20kW room air-cooled air conditioner

PORTOWER product

AC4000 series 8kW-20kW room air-cooled air conditioner

AC4000 is a room-level precision air-conditioning series for equipment rooms with high sensible-heat loads. It supports cooling, heating, humidification, and dehumidification for temperature and humidity control, with 8, 12, and 20 kW model options. Confirm operating conditions and configuration for project selection.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelAC4000-8 Series | AC4000-12 Series | AC4000-20 Series

cooling_capacity_kw6.8 | 11.4 | 18.5

functionOptional constant temperature and humidity function

electric_heating_capacity_kw3 | 6 | 6

humidification_capacity_kg_h2.5 | 2.5 | 3

humidification_methodWet film humidification

filter_gradeG4

indoor_unit_air_volume_m_h2200 | 3200 | 4900

number_of_indoor_fans1

indoor_main_power_supply3N+PE~380V 50Hz

indoor_unit_size_width_depth_height_mm600*560*1850 | 600*560*1850 | 750*750*2000

indoor_unit_weight_kg170 | 185 | 210

outdoor_unit_size_width_depth_height_mm790*355*828 | 790*355*1228 | 1320*560*1140

outdoor_unit_weight_kg70 | 80 | 85
