PORTOWER product

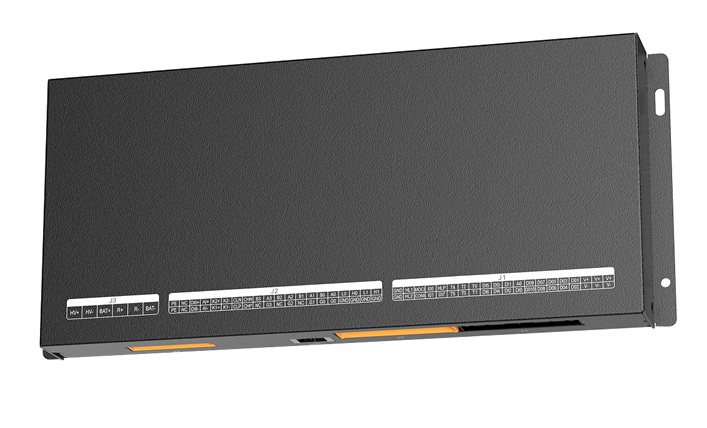

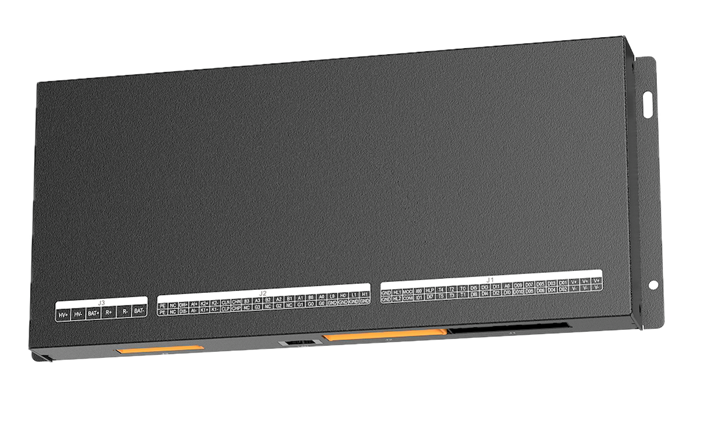

BMS controller
Yunjian Information offers in-depth customization of BMS hardware and base software as well as electronic manufacturing services. The service products cover 1500V three-level BMS.
Pricing, availability, certification and compatibility are confirmed during quotation.
Request a quote →Product advantages
Designed for practical deployment.
01
Source-grounded
Product details are retained from the authorized source package.
02
Fit review
Share your requirements and our team will validate the configuration.
03
Commercial clarity
Lead time, warranty and final terms are confirmed before order.
Technical specifications
Technical specifications
main_control_technical_parameters_activeMain Control Module
working_power_supplyVoltage | 9-32V
battery_cluster_voltage_collectionChannel Number | 3
collection_range-40℃-125℃
collection_accuracy± 1℃
battery_cluster_current_collectionNumber of Channels | 2
collection_methodHall Sensor/Shunt
temperature_samplingNumber of Channels | 4
insulation_detectionMeasurement accuracy | ± 20%
canNumber of channels | 2 (1 isolated channel, 1 non-isolated channel)
rs485Number of Channels | 4 (3 isolated channels, 1 non-isolated channel)
di_doNumber of channels | October 11th
ethernet_portChannel number | 1
daisy_chain_spiChannel Number | 2
5v_outputNumber of Channels | 1
12v_outputNumber of Channels | 1
size/ | 230*110*30
gprs_4g/ | GPRS/4G
storage_flash/ | 128Mbit
storage_sd_card/ | 8G
modelBMS controller
Applications
Tell us about the environment.
Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.
Documents
Product documents and support
Datasheets, lifecycle information and software links are provided where the source package includes them.
