Home/Products/C7460 4U High-Density Storage Server with 44×3.5 Bays
C7460 4U High-Density Storage Server with 44×3.5 Bays C7460 4U High-Density Storage Server with 44×3.5 Bays C7460 4U High-Density Storage Server with 44×3.5 Bays C7460 4U High-Density Storage Server with 44×3.5 Bays C7460 4U High-Density Storage Server with 44×3.5 Bays C7460 4U High-Density Storage Server with 44×3.5 Bays

PORTOWER product

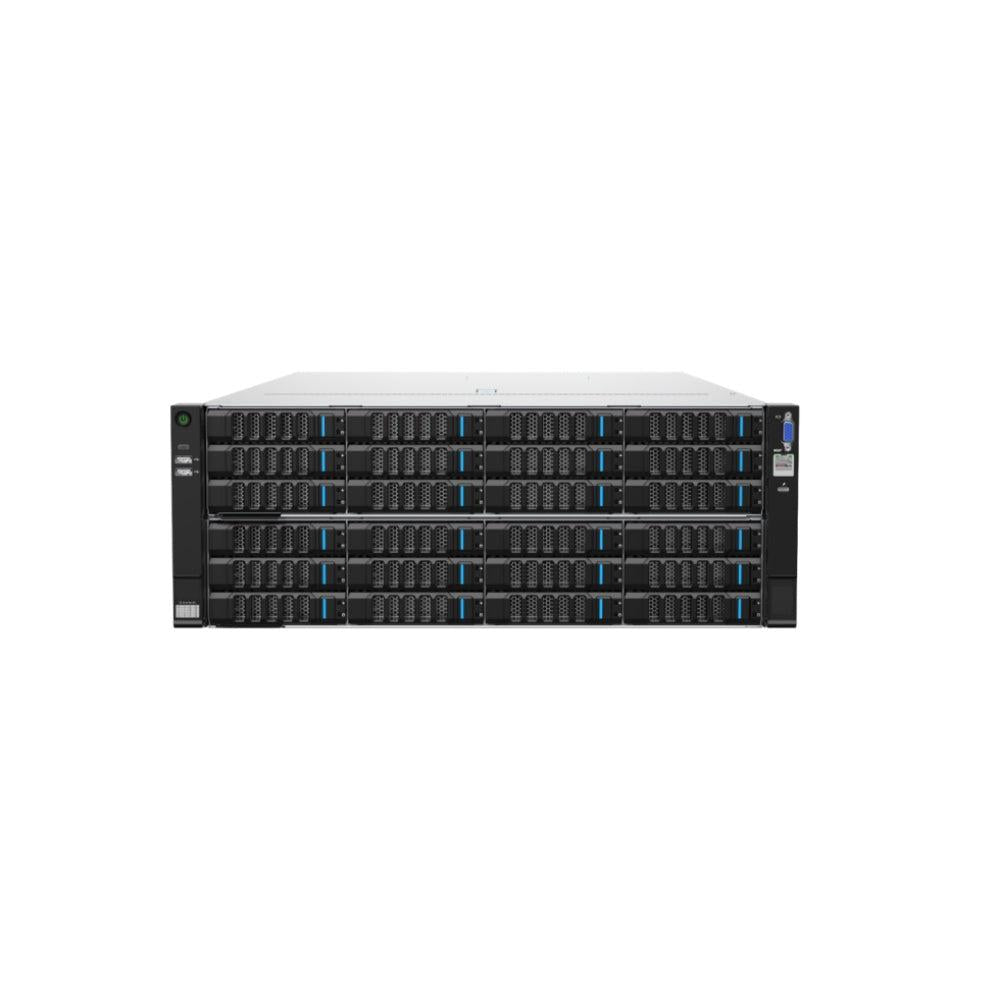

C7460 4U High-Density Storage Server with 44×3.5 Bays

C7460 is a 4U high-capacity storage server with 44 3.5-inch drive bays, multiple Tri-Mode interfaces, and support for up to 16 NVMe SSDs. Cloudnine describes four expansion-slot groups supporting up to six full-height and four half-height cards, plus two OCP 3.0 slots; confirm the selected configuration.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

01

Source-grounded

Product details are retained from the authorized source package.

02

Fit review

Share your requirements and our team will validate the configuration.

03

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

Technical specifications

ModelC7460 4U High-Density Storage Server with 44×3.5 Bays
Dimensions (H × W × D)174.4 mm (height) × 447.4 mm (width) × 828 mm (depth) (excluding the safety panel)
Form Factor4U case
GPU Module2 pairs of double-width GPUs
ProcessorSupports up to 2 Intel scalable processors or Leagile ZhenDi processors; up to 64 cores per processor; maximum power 350W
MemoryUp to 32 DIMMs; DDR5 speed up to 5600 MT/s
Storage ControllerLow-end HBA supports direct connection of JBOD for SDS storage; high-performance RAID controller supports RAID 0/1/10/5/6/50/60; VROC supports NVMe RAID
Hard Disk ExpansionStandard configuration: 36 large disks and 4 2.5-inch small disks; up to 44 3.5-inch drive bays, including SATA/SAS/NVMe (U.2); supports up to 16 NVMe U.2 drives; built-in SATA/NVMe M.2 slots
PCIe ExpansionSupports a maximum of 6 full-height expansion cards
Management SoftwareIntegrated BMC management chip AST2600, supporting functions such as IPMI 2.0, Redfish, SOL, KVM, and virtual media
NetworkBuilt-in 1 Gbps dedicated management network port; supports 2 OCP 3.0 network cards; flexible network-card configuration through standard PCIe slots
SecuritySupports intrusion detection for the chassis; supports Intel PFR 3.0 and SGX 2.0 security technologies; supports TCM/TPM security modules
I/O InterfaceStandard configuration includes 1 RJ45 management network port, 1 rear VGA interface, and 4 USB interfaces (2 front, 2 rear); optional front USB 3.0 interfaces; optional smart earpiece with VGA, management network, or Type-C management interface
Power SupplyOptional 800W/1300W/1600W/2000W/2600W/2700W/3200W CRPS standard power supplies, supporting 1+1 redundancy
Operating Temperature0°C to 35°C (the working temperature support is affected by different configurations; refer to the product technical documentation for details)

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
