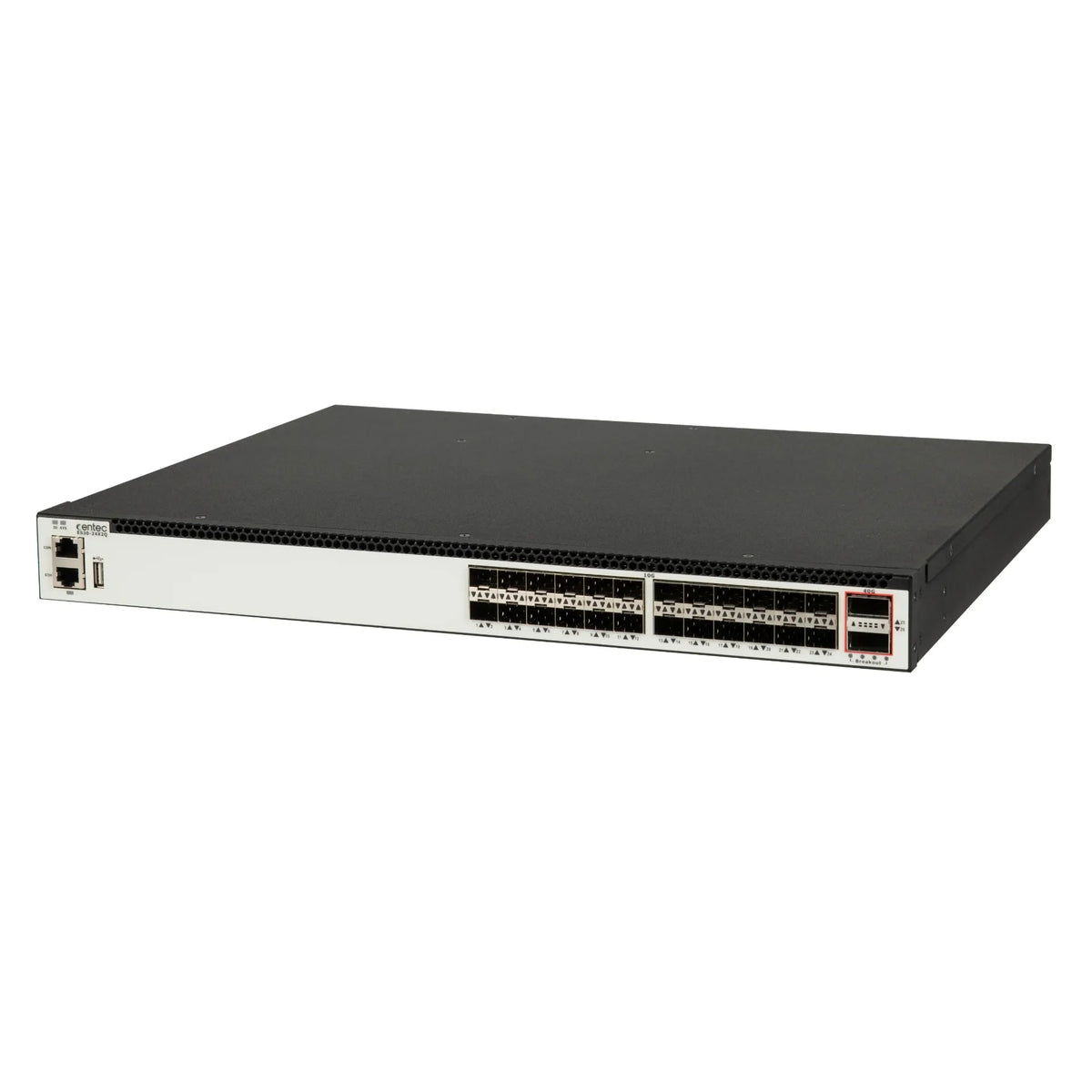

E530-24X2Q

E530 series three-layer Ethernet switch (hereinafter referred to as "E530") is a high-performance switch built on Ethernet switching chip CTC7132, supporting multiple port types. E530 is equipped with CentecOS system software, supports mainstream protocol standards and applications, and enables convenient and rapid deployment and management.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelE530-24X2Q

Dimensions(L*W*H)4.4 x 44.2 x 37.8 cm (1.7 x 17.4 x 14.9 in.)

Weight5.95KG

Management interfaceOne RJ45 type serial port, one RJ45 out-of-band management port, and one standard USB port

Interface24*10GE SFP+ port，2*40GE QSFP+ port

Switching Capacity640 Gbps

Packet Forward Speed476.16 Mpps

Operating Temperature0 to 45 ºC

Storage Temperature-40 to 70 ºC

Storage Humidity0 to 95% (non-condensing)

Packet Latency (ns)660ns

CPUSoC (dual-core, ARM A53)

Memory2GB

Flash8GB(eMMC)

Packet Buffer9MB

Power InputAC 100-240V 50/60Hz Maximum voltage: 90 ~ 264V; 47~63Hz Maximum voltage range: -36 ~ -72V Operating voltage: 240V; 1A

Dual power inputYES

Power hot-plugYES

Fan AirflowFront-to-back / rear-to-front airflow

Fan Count3

Fan Hot-swap Capability44W

Typical power consumption59W

Maximum Power Consumption-

MTBF(hours)206988

MTBF(years)23.63
