exchange_capacity24Gbps
packet_forwarding_rate17.8 Mpps
overall_dimensions_length_width_high150 x63. 4 x126mm
weight≤ 1.5 kg
console_port1
service_port_description8 Gigabit electrical ports, 4 Gigabit optical ports
input_voltageDC:24/48V
power_consumption_static< 10W
power_consumption_full_load< 15W
port_lightning_protectiondifferential touch ± 1KV, Common mode ± 4KV
working_ambient_temperature-40 ~ 70℃
working_environment_relative_humidity_non_condensation5% ~ 95%(no condensation)
port_featuresSupports IEEE 802.3x flow control Supports broadcast/multicast/unicast storm suppression Supports port auto-negotiation Supports rate and duplex setting Supports MDI auto-flipping Supports link-delay MTU VCT AdminDown Port isolation Port rate limiting and storm suppression LLDP
link_aggregationSupports static aggregation Supports LACP dynamic aggregation
mac_address_tableSupports MAC address learning, aging, and migration Supports static MAC addresses Supports black hole MAC addresses Supports setting the maximum number of MAC addresses to be learned on a port
vlan4K VLAN access, trunk, and hybrid modes Protocol VLAN QinQ
dhcpIPv4 DHCP Client IPv4 DHCP Snooping Option82
multicast_protocolIGMP Snooping IGMP Snooping Fast-leave IGMP Snooping Group-policy drop-unkown Support multicast VLAN (SVGL mode)
loop_protectionSupport STP/RSTP/MSTP Support Root Guard Support BPDU protection Support TC protection Support port Single-port/multi-port loop detection Support ERPS ring protocol
qos_aclSupports FF-SERv QoS Supports flexible queue scheduling algorithm, Supports multiple modes such as SP, WRR, and SP+WRR Packet 802.1p and DSCP priority re-marking IPv4 ACL Ingress ACL ACL Stream speed limit
port_mirroringPort mirroring Flow mirroring Remote mirroring
security_featuresSupports hierarchical user management and password protection Supports 802.1X Supports MAC authentication Supports Radius Supports local authentication Supports login whitelist Supports SSH 2.0 Supports IP Source Guard Anti-DOS attack
management_and_maintenanceSupports File Transfer Protocol (FTP) loading and upgrading Trivial File Transfer Protocol (TFTP) loading and upgrading Supports command line interface (CLI) configuration Support Console local configuration Support Telnet, SSH and other remote configuration Support Web graphical configuration. HTTPS Simple Network Management Protocol (SNMP) SNMP V3 RMON groups 1/2/3/9 System logs and trap NTP and SNTP Ping and Tracert

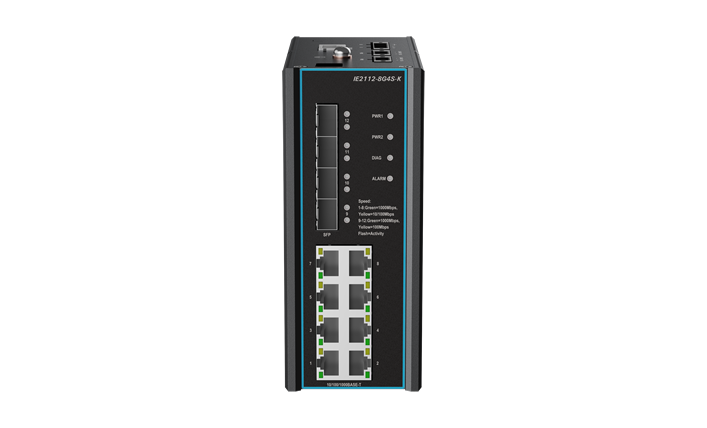

modelIE2112-8G4S-K
