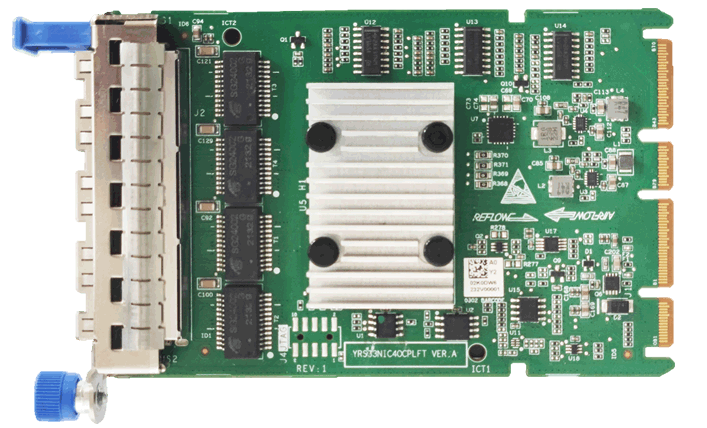

N1142P-4T-X1 Gigabit 4 power OCP i350
N1142P-4T-X1 Gigabit 4 power OCP i350
Pricing, availability, certification and compatibility are confirmed during quotation.
Request a quote →Product advantages
Designed for practical deployment.
01
Source-grounded
Product details are retained from the authorized source package.
02
Fit review
Share your requirements and our team will validate the configuration.
03
Commercial clarity
Lead time, warranty and final terms are confirmed before order.
Technical specifications
Technical specifications
network_card_informationNIC Model | N1142P-4T-X1
nic_typeOCP card
network_card_rate1GE
port_type4*RJ45
chip_typeintel I350
pcie_busPCI Express v2.1 (5.0GT/s)
basic_featuresController | Intel I350-AM4
cable_mediaCopper cable
copper_cable_type10Base-T Category 3,4,5,5 E or6: Maximum 100m 100Base-Tx Cat5, Cat 5E and Cat6: Maximum 100m 1000Base-T Cat 5E and Cat6: Max. 100m
baffle_height*
power_consumption_max5W
port_rate10/100/1000Mbps
power_supplyOCP3.0 Power supply
operating_temperature0-50℃
compatible_operating_systemWindows 10 / Linux, Windows Server2019/2016/2012/2008/2003 and 8.1/8
technical_parametersEthernet Power Management | No
pxe_supportYes
dpdkYes
jumbo_frame_supportYes
ncsi_supportYes
wol_supportYes
fcoeNo
pci_sig_sr_iov_supportYes
vmdqYes
flow_control_supportYes
modelN1142P-4T-X1 Gigabit 4 power OCP i350
