PORTOWER product

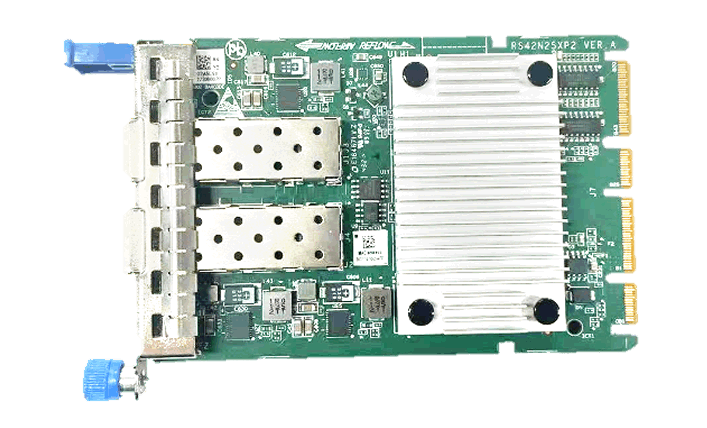

N2284P-2F-X1 25G 2 Optical E810
N2284P-2F-X1 25G 2 Optical E810
Pricing, availability, certification and compatibility are confirmed during quotation.
Request a quote →Product advantages
Designed for practical deployment.
01
Source-grounded
Product details are retained from the authorized source package.
02
Fit review
Share your requirements and our team will validate the configuration.
03
Commercial clarity
Lead time, warranty and final terms are confirmed before order.
Technical specifications
Technical specifications
network_card_informationNIC Model | N2284P-2F-X1
nic_typeOCP network card
network_card_rate25GE
port_type2*25G SFP28
chip_typeintel E810
pcie_busOCP3.0 SFF
basic_featuresController | Intel EYE810XXVAM2
cable_mediaOptical Fiber
fiber_type25GBase-SR, 25GBase-LR, 25GBase-Cu
baffle_height*
power_consumption_max9.2 W
port_rate1/10/25 Gb/s
power_supplyOCP3.0 Power supply
compatible_operating_systemCompatible with more operating systems: Windows 10; Windows Server2008/R2, 2012/R2, 2016/R2, 2019/R2; RHEL 6.x/7.x or newer; SUSE 11.x/12.x or later; FreeBSD 10.x/11.x; Ubuntu 14.x/16.x or newer; linux Kernel 4.x/5.x or newer
technical_parametersPXE support | Yes
dpdkYes
nic_bondingYes
iscsi_supportYes
wol_supportYes
fcoeNo
vmdq_sr_iovYes
ipsec_load_sharingYes
rdmaYes
modelN2284P-2F-X1 25G 2 Optical E810
Applications
Tell us about the environment.
Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.
Documents
Product documents and support
Datasheets, lifecycle information and software links are provided where the source package includes them.
