PORTOWER product

PM3028GSN V1

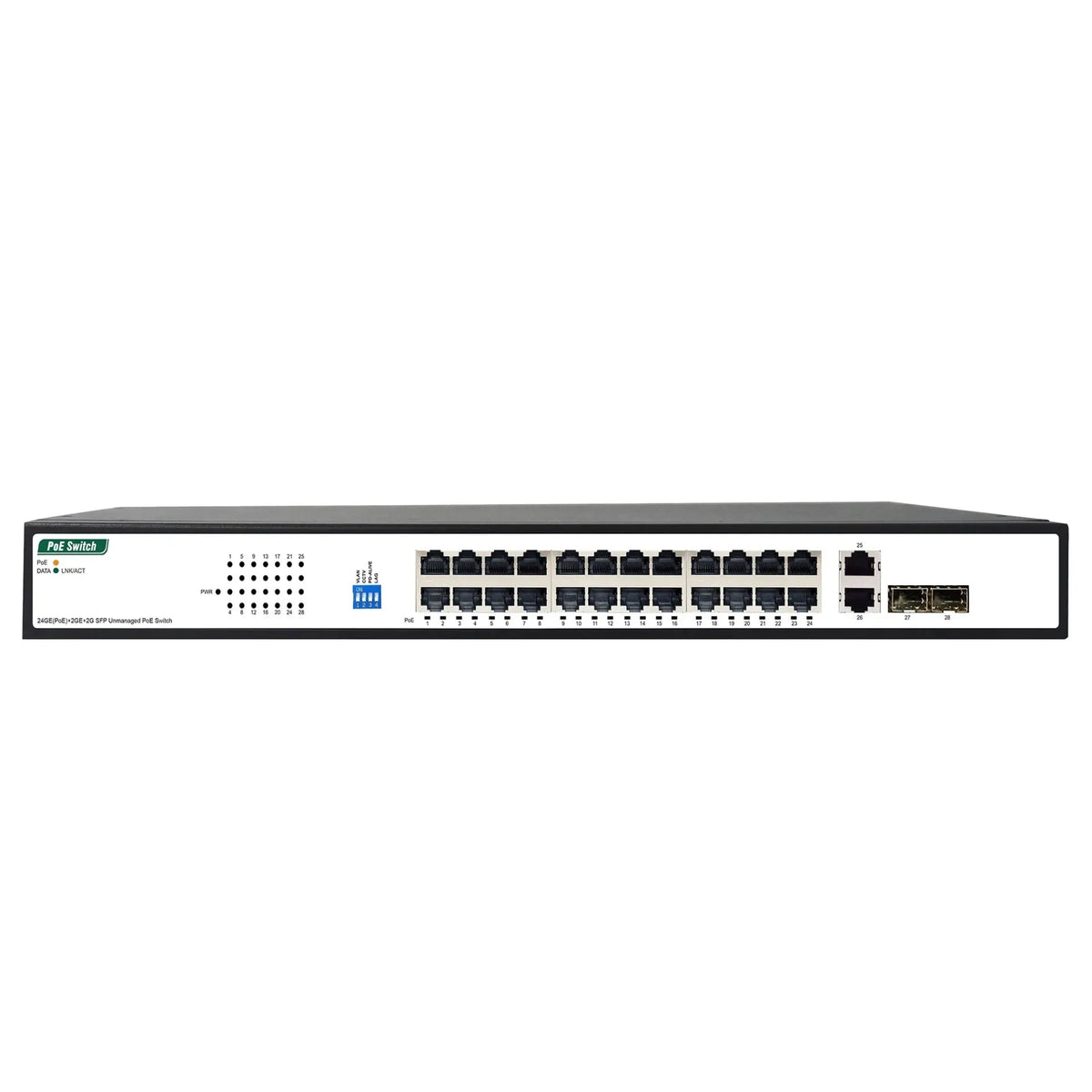

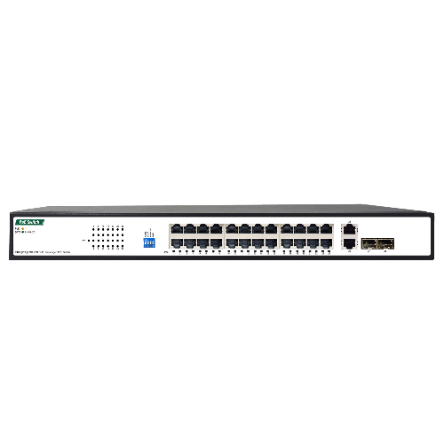

PM3028GSN V1 has 24 adaptive 10/100/1000Mbps RJ45 ports, two 10/100/1000Mbps uplink RJ45 ports and two 1000Mbps fiber module slots. Each RJ45 port supports automatic MDI/MDIX crossover and wire-speed forwarding. Ports 1–24 support PoE and comply with IEEE 802.3af/at. They can serve as Power over Ethernet equipment, automatically detecting standards-compliant powered devices and supplying power through the network cable.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

modelPM3028GSN_V1

Dimensions(L*W*H)440*207*44mm

Weight<5Kg

Interface24*10/100/1000Mbps PoE RJ45 Ports 2*10/100/1000Mbps RJ45 Ports 2*1000Mbps SFP slots

Switching Capacity56Gbps

Packet Forward Speed41.66Mpps

Operating Temperature0°C to 40 °C

Storage Temperature-40 to 70 ºC

Storage Humidity5 to 90% (non-condensing)

Power InputAC 100-240V 50/60Hz \ \ \

Dual power inputNO(Single power input)

Power hot-plugNO(fixed power supply）

Maximum Power Consumption280W

PoE Power Output30W

PoE Power Budget250W

MTBF(hours)>100000

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
