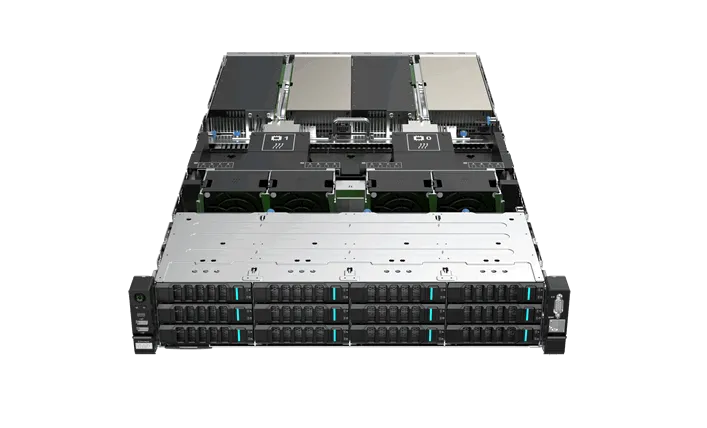

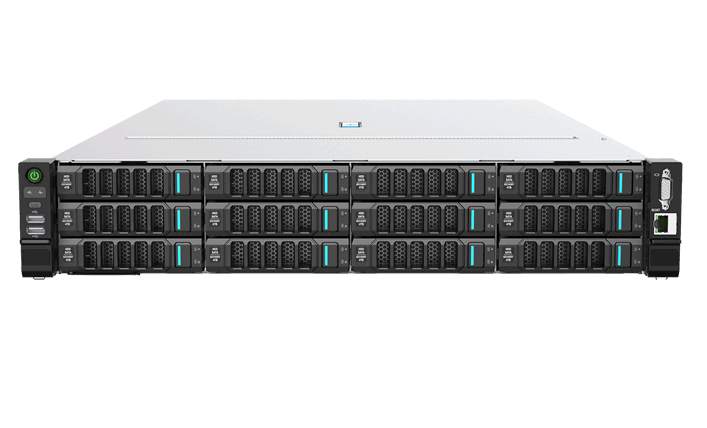

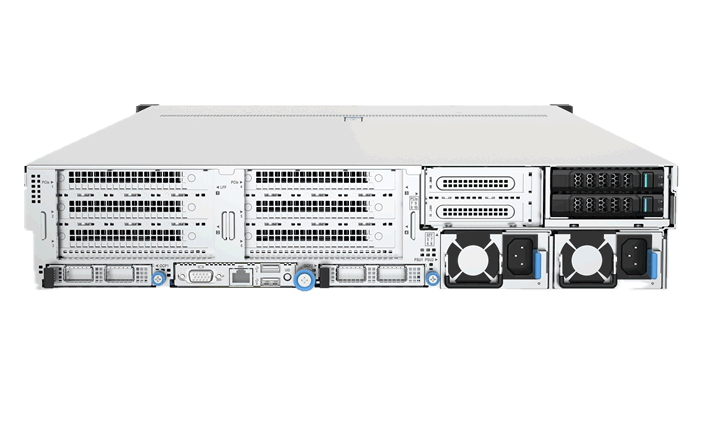

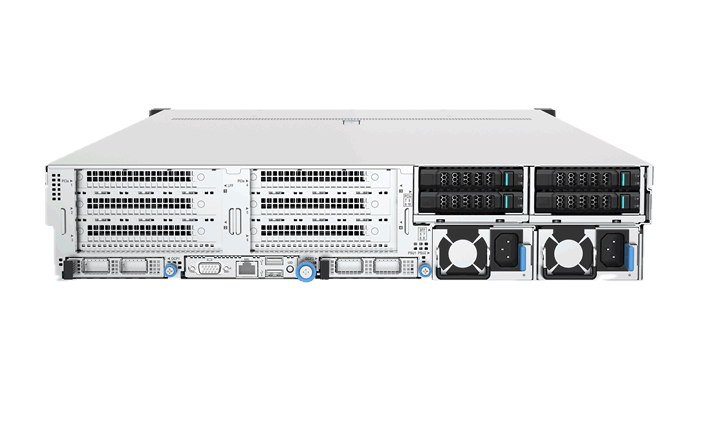

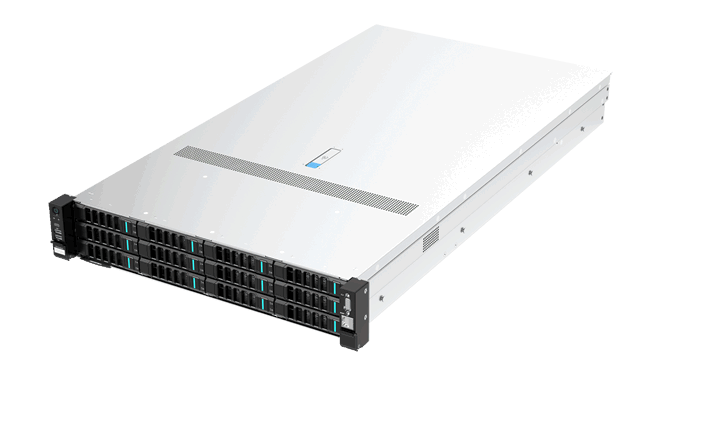

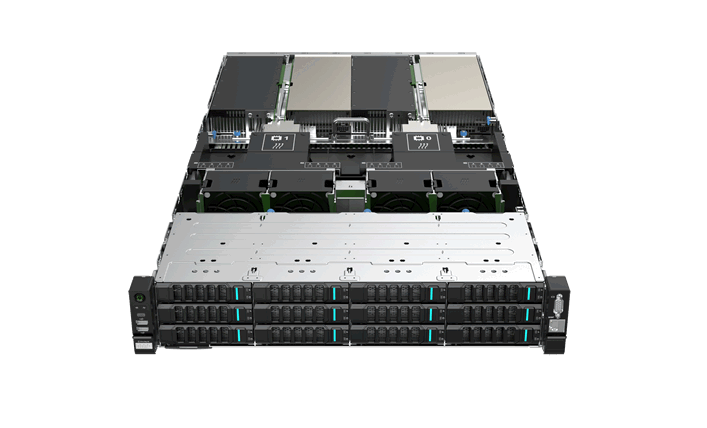

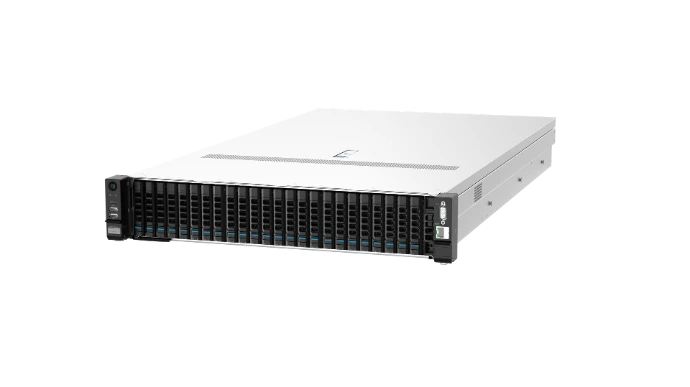

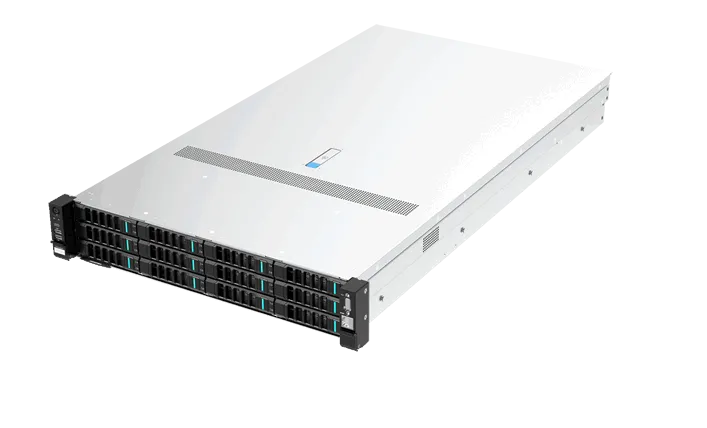

R7260 X6 Server

R7260 X6 is a 2U rack server supporting up to two CPUs, up to 32 DDR5-5600 RDIMM slots, and up to 8 TB memory. It supports up to 12 PCIe slots and up to 29 hard drives. The source-listed operating range is 0°C–45°C and varies by configuration.

Drive-type maximums describe configuration alternatives and are not additive. Contact PORTOWER to confirm CPU, memory, storage, and riser options.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

processorSupports up to 2 CPUs, up to 64 cores per CPU, and a maximum power rating of 350 W; supports HBM technology.

chipsetC741

memoryUp to 32 DDR5 memory slots at up to 5600 MT/s; RDIMM support; capacity up to 8 TB; supports CXL 1.1.

storage_controllerOptional high-performance RAID controller supporting RAID 0/1/10/5/6/50/60.

storage_extensionUp to 29 hard drives total. Maximums for 3.5-inch, 2.5-inch, NVMe U.2, and rear LFF/SFF drives are configuration-specific and not additive. Supports two 2280 SATA M.2 drives or one NVMe M.2 drive.

pcie_expansionUp to 12 PCIe slots: up to 10 standard rear-mounted slots and 2 OCP 3.0 slots.

gpu_supportSupports up to 4 double-width GPU cards, with up to 450 W per card.

management_softwareIntegrated BMC management supporting IPMI 2.0, Redfish, SOL, KVM, and virtual media.

networkOne onboard dedicated 1 Gbps management port; supports two OCP 3.0 network adapters; optional adapters can use standard PCIe slots.

i_o_interfaceStandard: one RJ45 management port, one rear VGA port, and four USB ports (two front, two rear). Optional expansion-card and mounting-ear interfaces vary by configuration.

securitySupports chassis intrusion detection, PFR 3.0, SGX 2.0, and TCM/TPM security modules.

power_supplyOptional 800 W, 1300 W, 1600 W, 2000 W, 2600 W, 2700 W, or 3200 W CRPS supplies; supports 1+1 redundancy.

operating_temperature0°C–45°C; supported operating range varies by configuration. Consult the product technical documentation for limits.

appearance_chassis_size2U standard chassis; 87 mm (H) × 447.4 mm (W) × 800 mm (D), excluding the safety panel.
