PORTOWER product

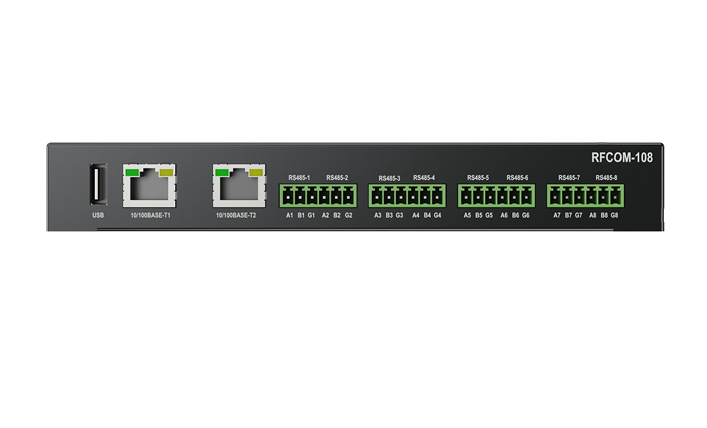

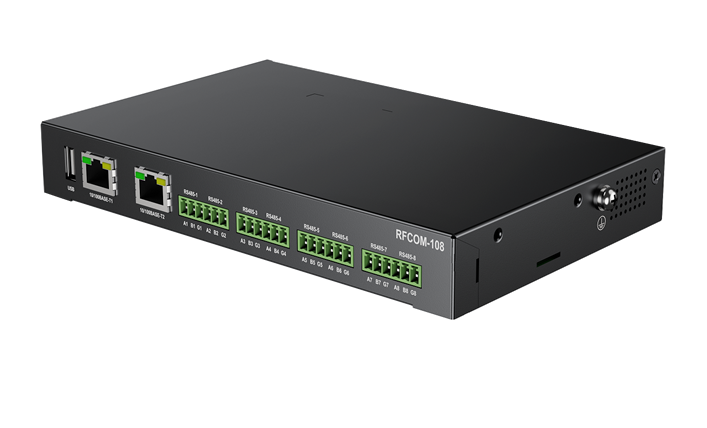

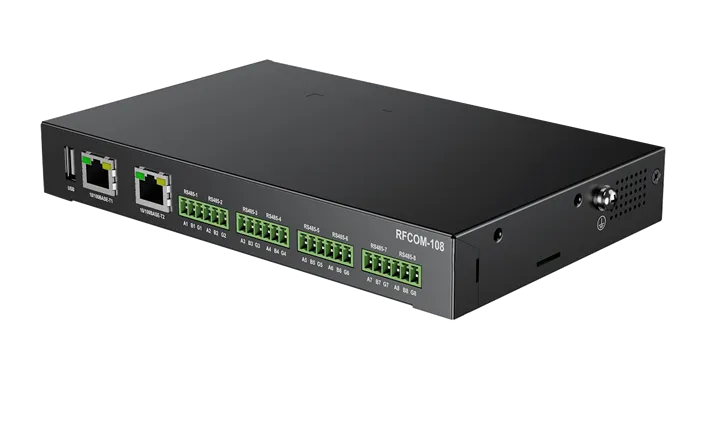

RFCOM-108 Industrial IoT Gateway

RFCOM-108 is an industrial IoT communication management terminal designed for industrial-control deployments. CloudNine lists dual 10/100M Ethernet, 4G connectivity, RS-485 communications, and Modbus RTU/TCP and IEC 104 protocol support. Confirm required interfaces and configuration with PORTOWER.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

cpuIMX6ULL@792Mhz，32Bit

operating_systemLinux

storageDDR:4G bit；（EMMC:8G bit，NAND flash:4G bit Choose one of the two）

ledSystem：Power*1,RUN*1*1 LAN：10/100M*2(Link*1,Act*1) Wireless：4G Communication：485 Reserved：ALARM and DIAG

othersRTC/Console port（Reserved）

weight0.7kg(No ear loops)

size195.6mm*118mm*28mm

input_voltageDC:9-36V

power_consumption_static<3W

power_consumption_full_load<5W

working_environment_temperature-40～80℃

relative_humidity_of_the_working_environment_non_condensation5%～95%(No condensation）

esdGB/T 17626.2-2018 Contact 8KV, air 15KV

eftGB/T 17626.4-2018 Class 4

surgeGB/T 17626.5-2018 Power supply Class 3，Signal Class 4

re_ceGB/T 9254.1-2021 Class A

communication_protocolSupport the Modbus RTU communication protocol Support Modbus TCP communication protocol Supports IEC104 communication protocol

communication_machine_softwareSupport data processing and protocol conversion Support modification of network port sorting and IP configuration Supports 485 configuration baud rate, supports stop bit and check bit modification, and supports firmware upgrade

safety_featuresSupport user hierarchical management and password protection

web_end_functionSupport IP search for the management machine Support IP modification Support login with different permissions account support configuration import support configuration summoning Support configuration export. COM configuration export /TCP configuration export/point table configuration export supports operation monitoring

modelRFCOM-108

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
