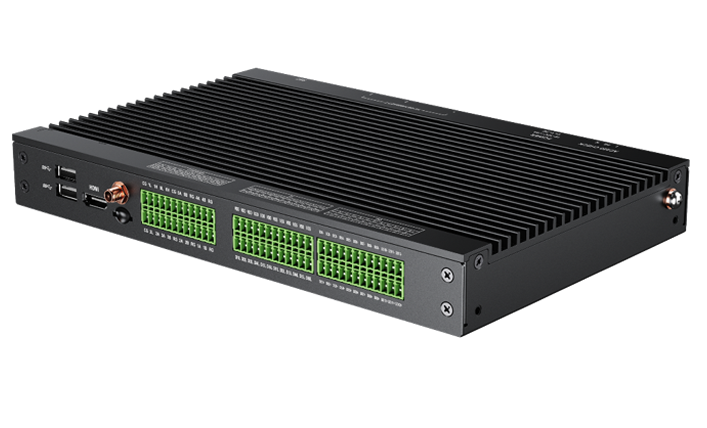

RFCOM-508 All-Purpose 4G Industrial Gateway
The RFCOM-508 industrial gateway is a high-performance communication device specifically designed for industrial Internet of Things (IIoT) scenarios, equipped with a domestic high-
Pricing, availability, certification and compatibility are confirmed during quotation.
Request a quote →Product advantages
Designed for practical deployment.
01
Source-grounded
Product details are retained from the authorized source package.
02
Fit review
Share your requirements and our team will validate the configuration.
03
Commercial clarity
Lead time, warranty and final terms are confirmed before order.
Technical specifications
Technical specifications
cpuRK3568J，32Bit
operating_systemDebian
storageDDR4:4GB；EMMC:32GB；SSD（256/512/1024GB Optional）

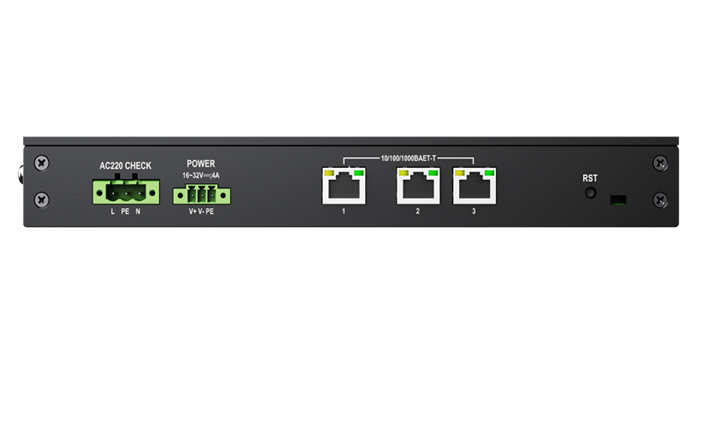

ledSystem: Power*1，RUN*1 LAN : 1000M*3(Link*1，Act*1)
othersRTC/Hardware watchdog
weight1.53kg(No ear loops)
size252mm*159mm*33mm
input_voltageDC:16-32V
power_consumption_static＜5W
power_consumption_full_load＜10W
working_environment_temperature-25～65℃
relative_humidity_of_the_working_environment_non_condensation5%～95%(No condensation）
esdGB/T 17626.2-2018 Contact: 6KV, air: 8KV
eftGB/T 17626.4-2018 Class 3
surgeGB/T 17626.5-2018 Class 3
re_ce_rs_csGB/T 9254.1-2021 Class A
communication_protocolSupport the Modbus RTU communication protocol Support Modbus TCP communication protocol Supports IEC104 communication protocol
communication_machine_softwareSupport data processing and protocol conversion Support modification of network port sorting and IP configuration Supports 485 configuration baud rate, supports stop bit and check bit modification, and supports firmware upgrade
safety_featuresSupport user hierarchical management and password protection
web_end_functionSupport IP search for the management machine Support IP modification Supports login with different permissions and accounts, supports configuration import, and supports configuration summoning Support configuration export. COM configuration export /TCP configuration export/point table configuration export supports operation monitoring
modelRFCOM-508 All-Purpose 4G Industrial Gateway
