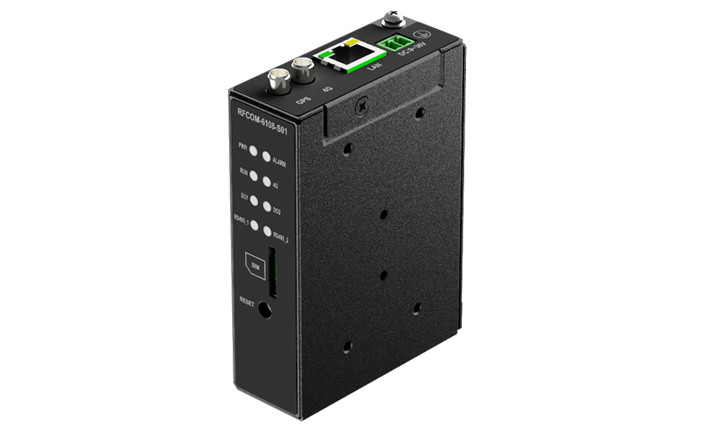

RFCOM-6108 Series IoT Gateway

The RFCOM-6108 series is an industrial IoT gateway family with model-specific 4G/GPS or Wi-Fi connectivity, Ethernet, RS-485 interfaces, and protocol support. Contact PORTOWER to confirm the right configuration.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

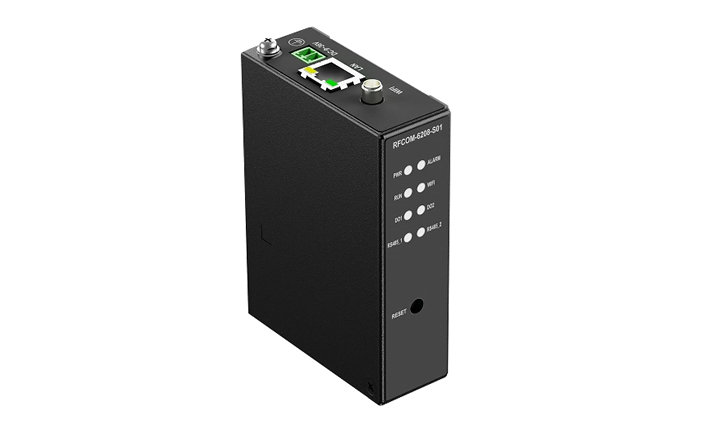

product_modelRFCOM-6108-S01 | RFCOM-6208-S01

cpu_modelARM Cortex R5 614Mhz | ARM dual-core 240 MHz

ram4MB | 4MB

flash2MB | 2MB

osLinux | Linux

power_in9-36V DC | 9-36V DC

ethernet1 channel, 10Mbps auto-sensing | 1 channel, 10/100Mbps auto-sensing

rs232_rs4852 channels of isolated or non-isolated RS485, with a maximum baud rate of 115200 | 2 channels of isolated or non-isolated RS485, with a maximum baud rate of 115200

hardware_watchdogSupported | Supported

web_configurationSupported | Supported

di_doEach 2 routes | Each 2 routes

indicator_lightsPWR, RUN, ALARM, 4G, RS485-1, RS485-2, DO1, DO2 | PWR, RUN, ALARM, WIFI, RS485-1, RS485-2, DO1, DO2

wireless4G cat.1 / GPS positioning | WiFi 2.4

protocol_lineModbus RTU, Modbus TCP, IEC104, DL/T 645, MQTT | Modbus RTU, Modbus TCP, IEC104, DL/T 645, MQTT

web_host_computerWEB login, permission management, device management, online upgrade, configuration management, interface management, message viewing, etc. | WEB login, permission management, device management, online upgrade, configuration management, interface management, message viewing, etc.

working_temperature-20-70℃ | -20-70℃

size97mm*70mm*27mm | 97mm*70mm*27mm

installation_methodSupports wall mounting and rail mounting | Supports wall mounting and rail mounting

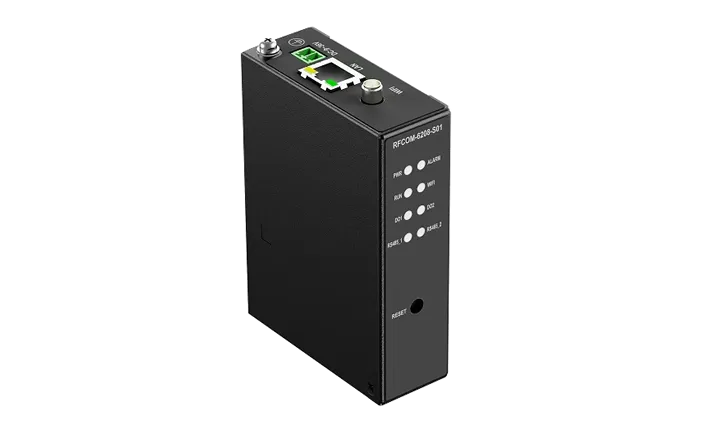

modelRFCOM-6108 Series

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
