PORTOWER product

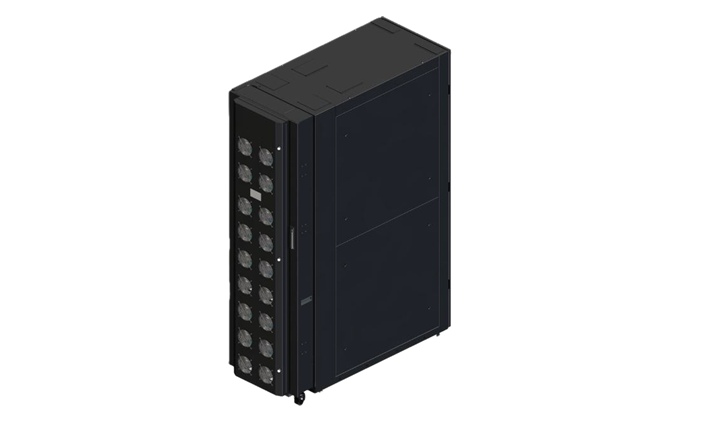

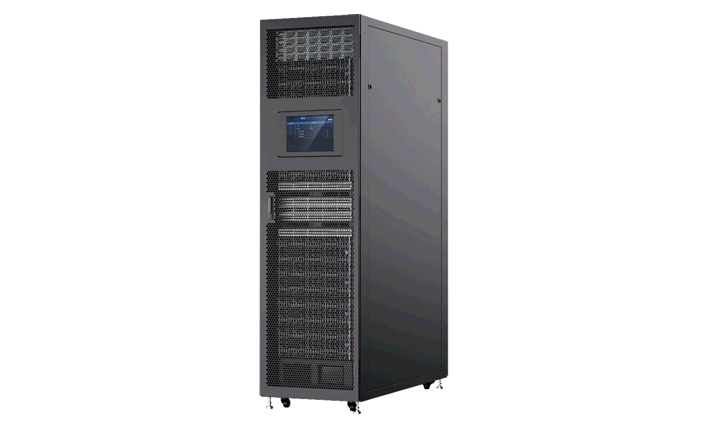

Single cabinet CR4000-LC series

The CR4000-LC is a liquid-cooled data-center cabinet using cold plates, pumps, and heat exchangers to remove heat through a circulating liquid loop. Cloudnine lists a 100 kW rack CDU cooling capacity and optional backplane evaporative cooling; confirm the final power and cooling configuration for the project.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

centralized_managementSingle cabinet power environment monitoring and server monitoring

display13.3-inch touch screen (1400mm optional)

maximum_power_supply3*39.6kW (no redundancy), 3x36kW(3 redundant modules)

power_module_efficiency96%

rack_cdu_cooling_capacity100kW

inlet_water_temperature20℃~45℃

system_coolingCold plate liquid cooling + backplane evaporative cooling (optional)

cabinet_dimensions_w_x_d_x_h_mm600*1200/1400*2200

cabinet_bearing> 3100kg

input_voltageAC380/DC240V

input_routesTwo AC or one AC+ one DC

input_ac_voltage_range180 Vac to 264 Vac

input_frequency_range45Hz to 65Hz

input_dc_voltage_range180Vdc to 320Vdc

output_rated_voltageDC54V

operating_temperature5℃~40℃

working_humidity8% ~ 90%

working_altitude≤ 3050m

modelSingle cabinet CR4000-LC series
