PORTOWER product

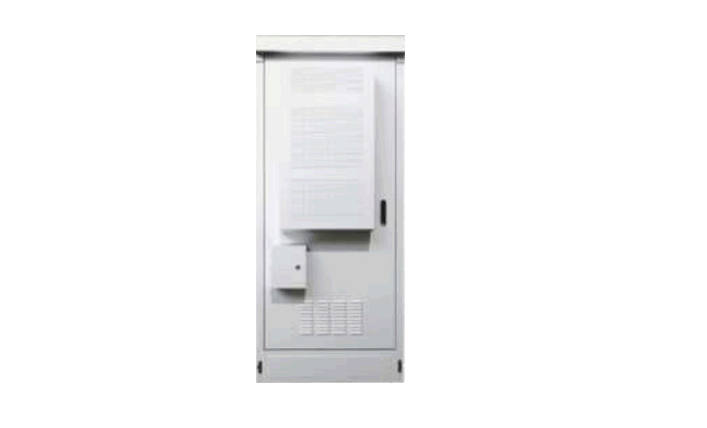

Single cabinet (outdoor) -CR5000

The CR5000 is an outdoor air-cooled data-center cabinet integrating the enclosure, monitoring, power distribution, and cooling. Factory-preinstalled components support faster outdoor deployment. Options include 48 V communication power, battery, monitoring, and direct-expansion air conditioning; verify the selected configuration.

Pricing, availability, certification and compatibility are confirmed during quotation.

Request a quote →

Product advantages

Designed for practical deployment.

Source-grounded

Product details are retained from the authorized source package.

Fit review

Share your requirements and our team will validate the configuration.

Commercial clarity

Lead time, warranty and final terms are confirmed before order.

Technical specifications

cabinet_systemCabinet dimensions: W x D x H (mm) | 650-900× 650-1200× 1000-2200

cabinet_doorSingle bin outdoor closed cabinet, front and rear doors open single

frameworkCold rolled steel plate +EPS sandwich plate

power_distribution_system_inputInput main switch | 32A/3P, 100A/2P

power_distribution_system_communication_powerCapacity | 48V200A, 48V300A

configurationCommunication power supply -48V Rack mounted, 4U

distribution_system_pduInstallation method | Cross mounting

typeSupport various port model combinations (GB, European standard)

distribution_system_batteryModel | 48V lithium battery with BMS system, capacity optional

monitoring_systemMonitor host | CR1000 Series Intelligent monitoring host, 1U rack

temperature_and_humidity_sensorStandard

water_sensorOptional

smoke_detectorStandard

cameraOptional

audible_and_visual_alarmOptional

sms_alarmOptional

monitoring_platformStandard

fire_protection_systemFire unit | Optional, smoke, sound and light alarm, fire linkage

refrigeration_systemCooling mode | Direct expansion air cooling

installation_methodIntegrated air conditioning outdoor type, DC 48V

cooling_capacity600W-3000W

modelSingle cabinet (outdoor) -CR5000

Applications

Tell us about the environment.

Campus, data-center, industrial, edge and project deployments can be scoped through the RFQ workflow.

Documents

Product documents and support

Datasheets, lifecycle information and software links are provided where the source package includes them.
